4 inch Diamond Masonry Grinding Wheel with Cup Shape for Concrete Marble

Shanghai ShangErBo Import & Export Co.,Ltd
Contact Now

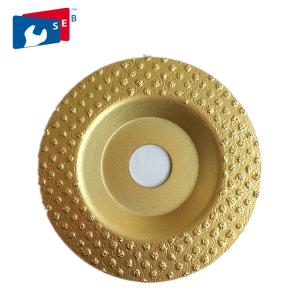

4 inch Diamond Masonry Grinding Wheel with Cup Shape for Concrete Marble

Brand Name : SEB

Model Number : SEB-B201919

Place of Origin : China

MOQ : negotiation

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000pcs/month

Delivery Time : 35days

Packaging Details : one piece per color box

Shape : Cup-Shaped

Bond : hard, medium, soft, etc.

Body material : carbon steel

Abrasive : Silicon Carbide + diamond

Segment height : 7/10/20/24/30mm

Craft : sintered or welded

Quality : European standard

Application : for grinding granite, marble, concrete and other masonry materials

Contact Now

4 inch Diamond Masonry Grinding Wheel with Cup Shape for Concrete Marble

Description:

Size: 100-230mm

Hole diameter: 20, 22.23,25.4mm

Bond: hard, midium, soft.

Body material: carbon steel

Abrasive: Silicon Carbide + diamond

Type: normal

Craft: sintered or welded

Specification:

Application Diameter Segment Height (mm)

Segment

Thickness (mm)

Segment No. Arbor (mm)

Single row diamond

grinding cup wheel

105mm(4”) 5 7 8 M14,5/8”-11,22.23
115mm(4.5”) 5 7 9 M14,5/8”-11,22.23
125mm(5”) 5 7 10 M14,5/8”-11,22.23
150mm(6”) 5 7 12 M14,5/8”-11,22.23
180mm(7”) 5 7 14 M14,5/8”-11,22.23

Application Diameter Segment Height (mm)

Segment

Thickness(mm)

Segment No.

Arbor

(mm)

Double row diamond grinding cup wheel 105mm(4”) 5 7 16 M14,5/8”-11,22.23
115mm(4.5”) 5 7 18 M14,5/8”-11,22.23
125mm(5”) 5 7 20 M14,5/8”-11,22.23
150mm(6”) 5 7 24 M14,5/8”-11,22.23
180mm(7”) 5 7 28 M14,5/8”-11,22.23

Application Diameter Segment Height (mm)

Segment

Width (mm)

Segment No.

Arbor

(mm)

Turbo diamond grinding wheel 105mm(4”) 5 20 Turbo M14,5/8”-11,22.23
125mm(5”) 5 20 Turbo M14,5/8”-11,22.23


Why choose us:

1.Choose high quality material to provide more stable product to our customers

2.We promote product value by more smooth section

3.We accelerate production efficiency by sharp saw-blades and longer lifespan

4.The company complete quality control system, solving customer’s concern

FAQ:

1.Q: Can you accept customized service?

A: Of course yes. Color and packaging can be made based on your target.


2.Q: When does my formal order to ship?
A: 30 days after payment. Please assure your quantities, we will give you accurate lead time.

3.Q: How about your quality?

A: We have three level of quality: top, middle and normal, you will have different choice.


Product Tags:

diamond cup grinding wheel



diamond turbo cup wheel


Wholesale 4 inch Diamond Masonry Grinding Wheel with Cup Shape for Concrete Marble from china suppliers

4 inch Diamond Masonry Grinding Wheel with Cup Shape for Concrete Marble Images
